Home
Laser Module
MS51
MS51
Accuracy
±1Y
Range
Max: 1200Y
Weight
50g
Size
23*23*47mm
Contact
Inquiry Now
Inquiry
[contact-form-7 id=”180″]
Specification
MODEL
MS51-600
MS51-1200
Max Distance
600Y
1200Y
Accuracy
±1Y
±1Y
Resolution
0.1
0.1
Laser Wavelength
λ = 905nm
λ = 905nm
Red-Laser
λ = 635nm
λ = 635nm
Standy Current
<50mA
<50mA
Peak Current
<1.0A
<1.0A
Ranging Current
200mA，DURATION :0.5-1.5 Sec
200mA，DURATION :0.5-1.5 Sec
Red Laser Current
40mA
40mA
Ranging Frequency
0.7Hz-2Hz(Can Customized)
0.7Hz-2Hz(Can Customized)
Communication Port
IIC (UART & RS232 (Can Customized)
IIC (UART & RS232 (Can Customized)
Voltage
DC3V-6V(Normal:5V)
DC3V-6V(Normal:5V)
Standard V
3.3V
3.3V
Standby Consumer
<250mW
<250mW
Laser Safety
IEC60825-1 CLASS 1M
IEC60825-1 CLASS 1M
Working Temp
~10oC -+50 oC
~10oC -+50 oC
Storage Temp
~20oC -+60 oC
~20oC -+60 oC
Wire Remark
1：RX/SCL; 2: TX/SDA ; 3: GND ; 4: VCC
1：RX/SCL; 2: TX/SDA ; 3: GND ; 4: VCC
Weight
50g
50g
Size
23*23*47mm
23*23*47mm

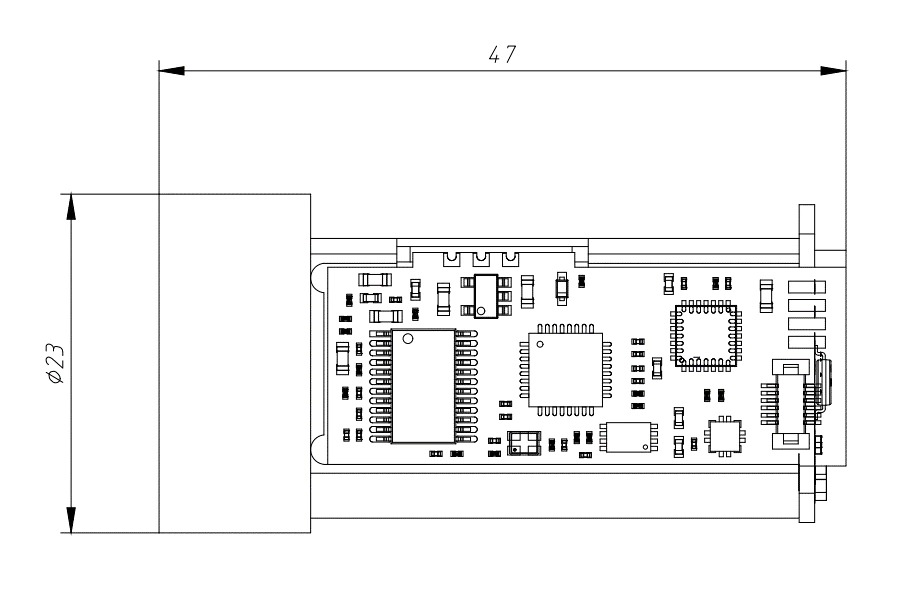

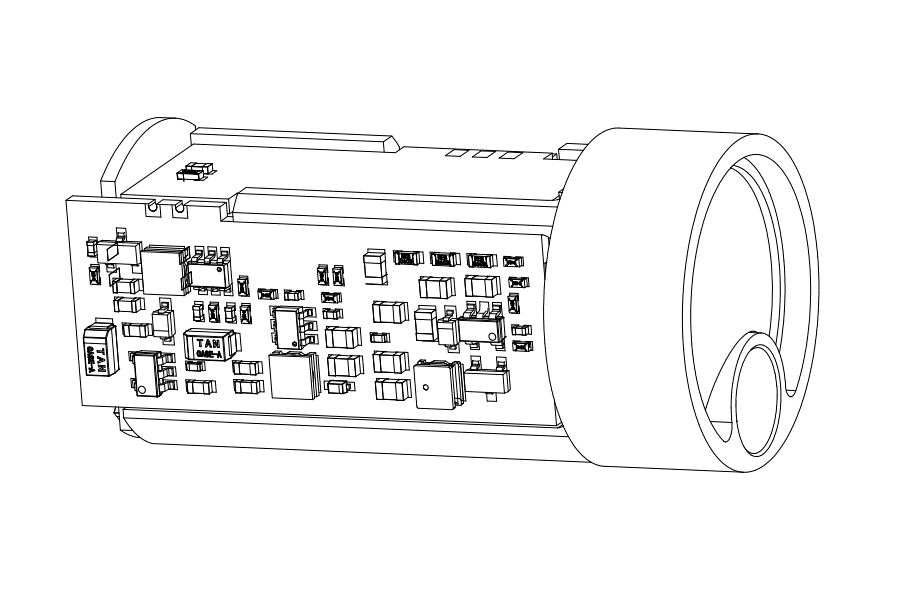

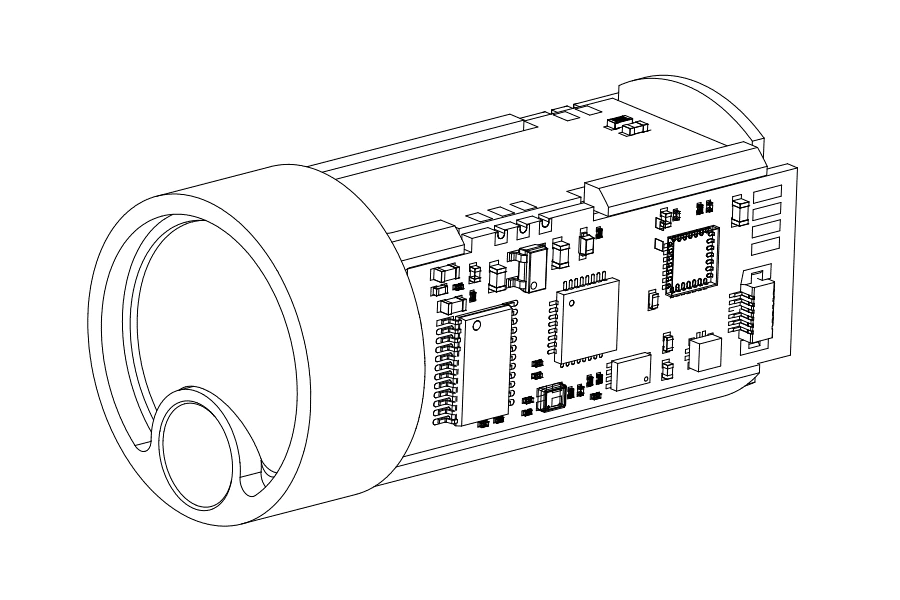

Line Drawing
